A multi-perspective view of Internet censorship in Myanmar

In the wake of a military coup in February 2021, Myanmar experienced unprecedented levels of internet censorship.

In response, we collaborated with CAIDA’s Internet Outage Detection and Analysis (IODA) team and Myanmar ICT for Development Organization (MIDO) on publishing a research report which documents a series of nightly internet outages and the blocking of social media, Wikipedia, and circumvention tool sites in Myanmar following the military coup.

In the months that followed, we continued to examine internet censorship in Myanmar quite closely. We collaborated with IODA, Kentik, and other researchers from UC San Diego and the University of Michigan to expand our analysis. We used diverse datasets and measurement methods to offer a holistic view into the censorship events in Myanmar that occurred since the coup and show how internet censorship evolved between 1st February 2021 to 30th April 2021.

As an outcome, we produced a research paper (“A multi-perspective view of Internet censorship in Myanmar”) which we submitted to the ACM SIGCOMM 2021 Workshop on Free and Open Communications on the Internet (FOCI 2021). Our paper was published by FOCI 2021 and CAIDA’s Ramakrishna Padmanabhan presented our research findings at the workshop.

READ RESEARCH PAPER

Below we summarize the key findings of our paper.

• Summary of findings

  • Internet outages

  • Website and social media blocking

  • Twitter hijack and collateral damage

  • Conclusion

Summary of findings

You can learn about the findings of our research paper by viewing the following video produced by CAIDA’s Ramakrishna Padmanabhan.

Internet outages

Following the military coup on 1st February 2021, Myanmar experienced a series of internet outages until 28th April 2021.

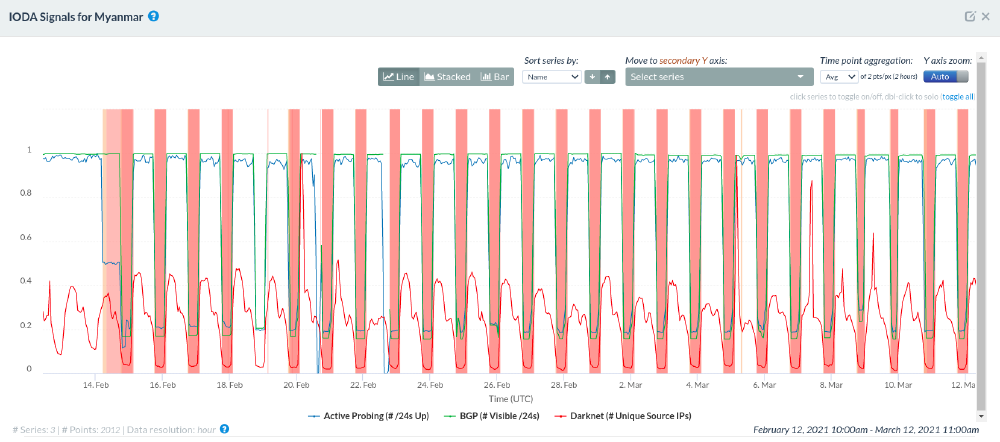

Source: Internet Outage Detection and Analysis (IODA), IODA Signals for Myanmar, https://ioda.caida.org/ioda/dashboard#view=inspect&entity=country/MM&lastView=overview&from=1613125943&until=1615545143

In summary, these include:

• Coup-day outage. On 1st February 2021, IODA data shows that Myanmar experienced a significant internet outage, starting at 03:30 AM local time. Notably, there were several differences in the extent to which ISPs were affected by the outage and in timing patterns, suggesting the lack of an internet kill switch.

• Weekend-after-coup outage. On 6th February 2021, IODA data shows that Myanmar experienced a 28-hour long internet outage that affected most ISPs in Myanmar. The outage end-times were similar across most ISPs, suggesting synchronization and improved planning, coordination, and execution of the shutdown.

• Nightly outages. Starting from the night of 14th February 2021, Myanmar experienced nightly internet outages (which affected most ISPs) for 72 nights, until 28th April 2021. These outages began at the same time (01:00 local time) and lasted 8 hours for most nights. In contrast to the coup-day outage, the nightly outages occurred in a highly synchronized manner, with outages beginning and ending at identical times for most ISPs.

• Cellular outages. As of 15th March 2021, Kentik traffic data shows that cellular connectivity has been heavily restricted in Myanmar. The cellular restrictions were ongoing, as of mid-May 2021.

Website and social media blocking

Starting from 4th February 2021 (3 days after the coup), ISPs in Myanmar started blocking access to a number of websites – including Wikipedia, social media (such as facebook.com and twitter.com), and circumvention tool websites. These blocks remain ongoing.

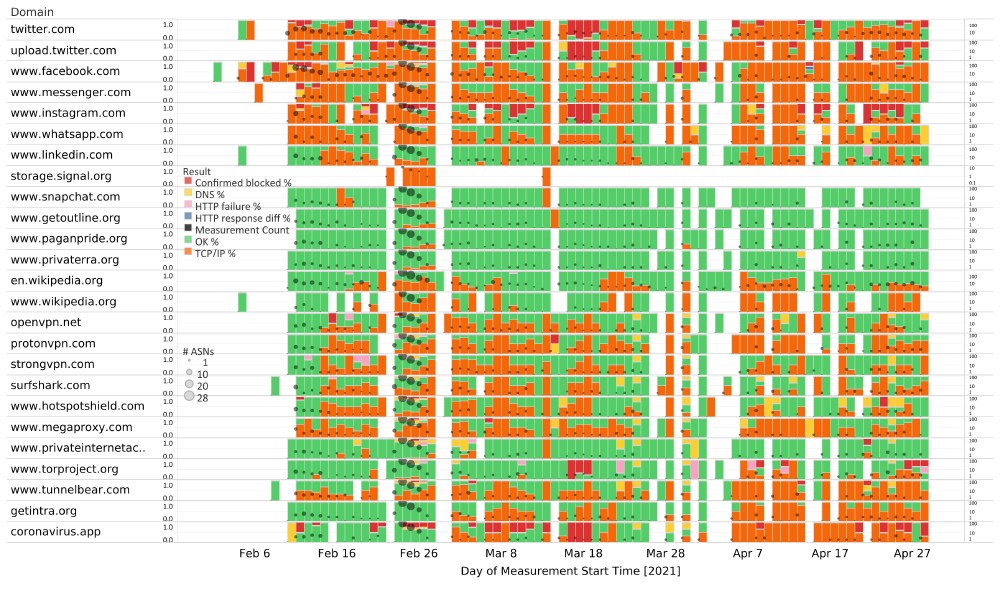

We share these blocked websites through the following chart, which summarizes OONI measurement findings between February 2021 to April 2021.

Source: Blocking of websites in Myanmar from February 2021 to April 2021 based on OONI measurements.

In terms of censorship techniques, we found:

• IP blocking became more prevalent after the coup. We primarily observed IP-based blocking of websites, as most OONI measurements (across ASes) show that TCP connections to the resolved IP addresses failed (when resolution succeeded in providing the right IP address for the website). This censorship technique is primarily seen in OONI data after the coup, as our analysis in Myanmar in 2020 showed that DNS based interference was previously more prevalent.

• Collateral damage as a result of IP blocks. IP based blocking can potentially lead to collateral damage, affecting the accessibility of other domains hosted on a blocked IP address. We found 2 such cases:

  • Domains hosted on the IP 172.217.194.121. This IP address belongs to the Google hosting network and includes domains such as www.snapchat.com, www.getoutline.org, www.paganpride.org, and www.privaterra.org, all of which presented TCP/IP anomalies between 24th-27th February 2021 (as illustrated in the above chart). This suggests that some of these domains may have been blocked unintentionally as a result of collateral damage.

  • Domains hosted on the IP 151.101.1.195. This address belongs to the Fastly network and includes the domains coronavirus.app and getintra.org, both of which started to present TCP/IP anomalies on 2nd March 2021. Reverse IP lookups indicate that the blocking of this IP may lead to the blocking of more than 10,000 websites, showing the severity of collateral damage due to IP blocking.

• Ongoing DNS based tampering. Even though ISPs in Myanmar primarily appear to implement IP-based blocks following the coup, we continue to observe cases of DNS based interference as well. Many ISPs in Myanmar showed evidence of confirmed DNS blocking (as illustrated in the previous chart), usually resolving to an IP address that hosted a blockpage. Some ISPs responded with NXDOMAIN responses for domains like www.facebook.com. DNS interference was not consistent inside an ISP; some DNS resolvers implemented DNS blocking while others in the same ISP did not.

Overall, we found:

• Censorship variance across networks. We found different websites blocked on different networks, and different censorship methods used by different ISPs in Myanmar. This suggests that internet censorship in Myanmar is not centralized and that local ISPs may implement blocking at their own discretion.

• Non-deterministic censorship. OONI measurements show that IP blocks are not implemented consistently, offering additional signs that ISPs operate independently and (sometimes) arbitrarily. Within the same AS, we do not observe IP blocking for all the addresses associated with a domain. One cause of this inconsistency could potentially be the result of ISPs using incomplete addresslists for blocking. For example, OONI measurements collected from the testing of facebook.com on Frontiir (AS58952) show the blocking of Facebook’s IP 157.240.15.35, but not of Facebook’s IP 31.13.64.35.

Twitter hijack and collateral damage

On 5th February 2021 —the same day that Twitter was blocked in Myanmar— Myanmar’s Campana Mythic (AS136168) announced the 104.244.42.0/24 prefix, belonging to Twitter. The proximity of this hijacking event in time to the blocking of Twitter in other Myanmar ISPs suggests that the original intent was to blackhole traffic to Twitter for users of this Myanmar ISP. However, this route accidentally leaked to the global internet, appearing as if AS136168 owned/hosted Twitter’s address space. This accidental event offers additional evidence that providers used various ways to perform IP-level blocking to censor domains.

Our analysis of BGP data collected by the Routeviews and RIPE RIS projects shows the illegitimate route propagated (at least) to operators in Singapore (AS4844, AS56300, AS24482, AS132132) and Vietnam (AS45903) who received, accepted, and further propagated it. This resulted in collateral damage for Twitter users outside Myanmar.

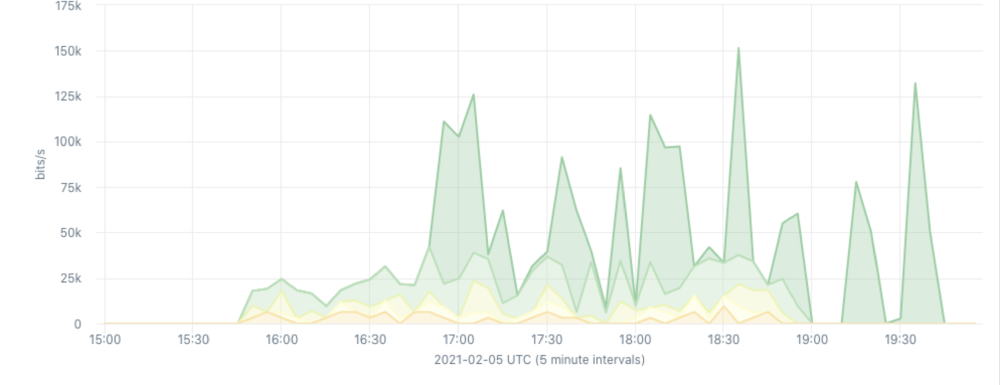

We quantify the extent of this collateral damage in the following graph, which shows that a small volume of traffic from Kentik’s customers outside Myanmar was directed towards the hijacker (AS136168) instead of Twitter (AS13414).

Source: Collateral damage to Twitter users outside Myanmar as a result of the BGP hijack event affecting Twitter’s address space. The figure shows Twitter traffic observed by Kentik from different source ASes (indicated by different colors) that was being routed towards Campana Mythic (AS136168).

Conclusion

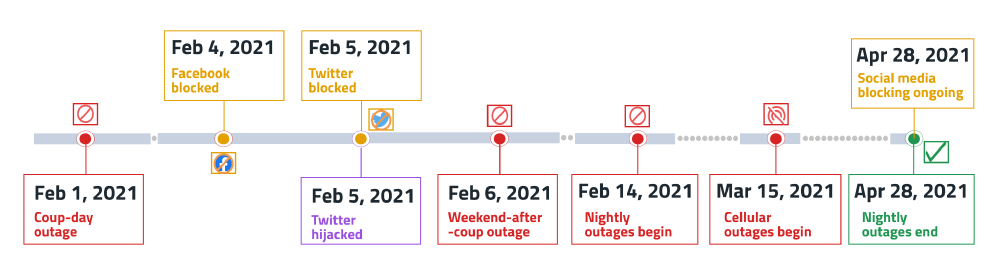

The following timeline summarizes the main internet censorship events that we detected in Myanmar following the February 2021 military coup.

Image: Timeline of censorship events in Myanmar.

Collectively, these are among the most disruptive, long-lasting, and widespread censorship events in recent times.

The censorship events in Myanmar reflect emerging patterns of politically inspired censorship and offer insight into the ways in which authoritarian regimes combine censorship approaches strategically to achieve their immediate goals. The timing of censorship events in Myanmar coincided with the military coup, which is consistent with many other studies which have shown that internet censorship is targeted during sensitive political time periods and periods of potential power transitions, such as elections and large-scale protests.

The fact that the initial outages were implemented by the challenger rather than the incumbent government suggests that internet censorship during a coup attempt can increase the probability of a successful coup. Conspirators in a coup may benefit from shutting communications quickly, to prevent public or government coordination against their coup attempt. Yet, the haphazard nature of the outages during the initial coup in Myanmar may reflect the difficulty of the challenger in implementing this censorship, and could be a reflection of their initial lack of political control.

After consolidating power, the new junta in Myanmar began imposing internet curfews, shutting down the internet during the night while keeping it on in the day. Like physical curfews, regimes may implement internet curfews to target organization of political dissent while minimizing the impact on the economy, as many sectors require internet access during the day.

While nightly outages in Myanmar have now ended, the ongoing blocking of social media and circumvention tool websites (which has persisted since February 2021) may indicate a move toward more selective methods of censorship. This shift is consistent with a pattern in authoritarian regimes of engaging in targeted censorship to maximize political impact while minimizing its cost.

We hope this paper can provide a template of combining internet measurements to provide a broader understanding of digital strategy of autocrats, an effort that could be scaled and replicated cross-nationally in future work.
